RTS – Digital Matrix Frames
The RTS family of digital intercom matrices is the most extensive, widely used line of intercoms in the world. From the top-of-the-line ADAM matrix, available in sizes from 16 to 880 users, to the Zeus III LE 16-port matrix, RTS matrices are the standard for reliable, mission-critical communications in broadcast, military, industrial and entertainment applications.

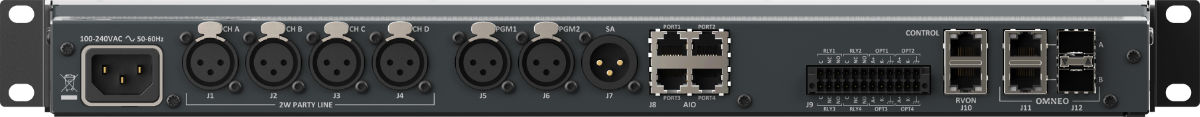

ODIN
OMNEO Digital Intercom
The ODIN Digital Intercom is a highly scalable intercom system in a 1RU (Rack Unit) package. As your capacity needs to evolve, a single ODIN can grow from 16 ports to a maximum of 128 ports. A maximum of eight ODIN units can be interconnected via an optical Inter-Frame Link creating a single matrix with up to 1024 ports. The total number of licensed ports may be allocated freely to any port hardware type supported by the unit. The front panel has been designed to incorporate a User Interface as an alternative option to AZedit that supports the most common setup and configuration tasks. The AZedit and IPedit software applications have been updated to support ODIN. Featuring connectors for AIO, OMNEO and two-wire technology, ODIN supports keypanel technology going forward and, as always, RTS legacy keypanels. OMNEO is standard on RJ-45 connectors or is available using optional Optical Fiber SFP connectors.

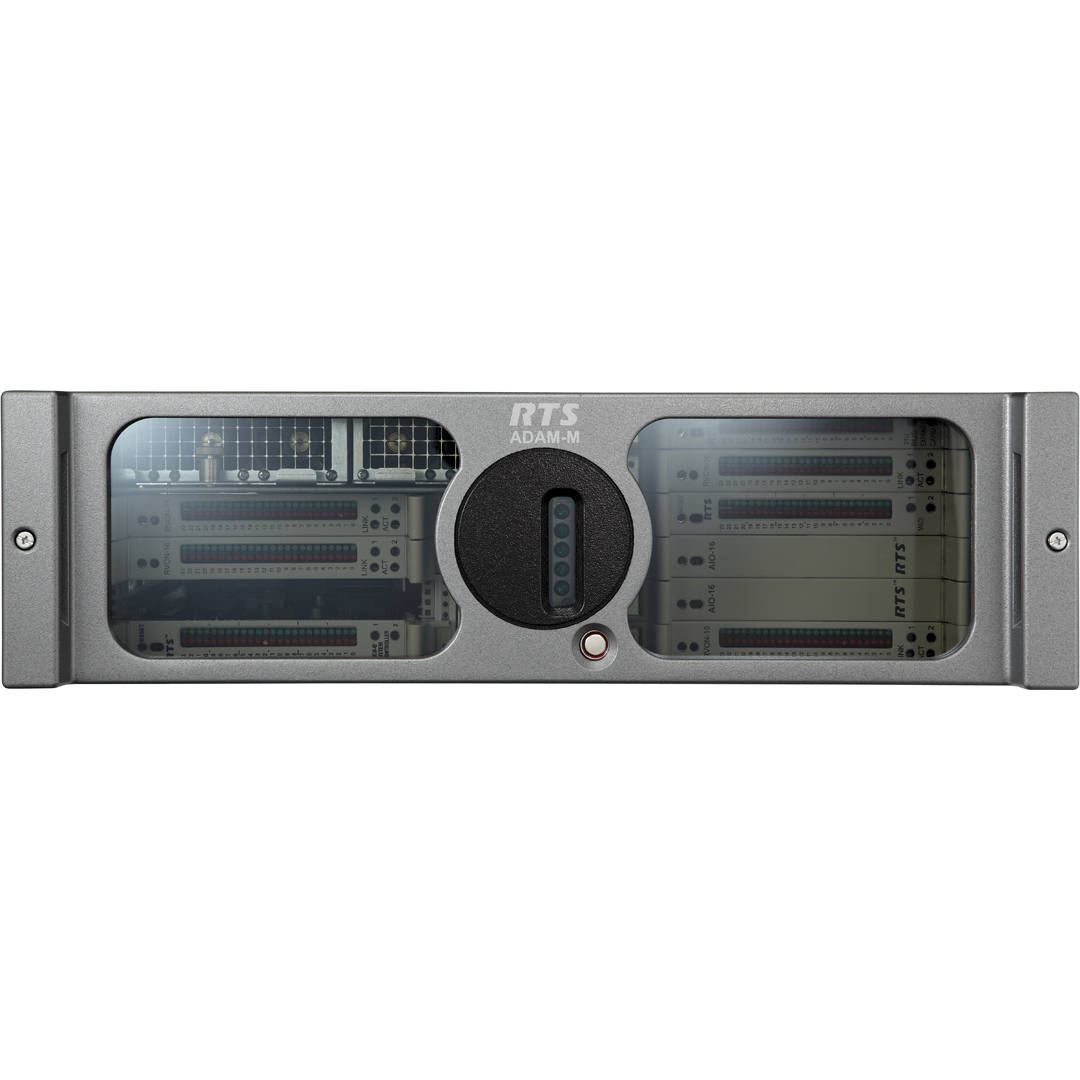

ADAM-M
Mid-Size Modular Matrix Intercom
The sleek ADAM-M matrix provides 128+ ports in an extremely compact 3RU frame. ADAM frames support the widest variety of audio interface cards in the industry, including AIO, RVON VoIP, Omneo and MADI.

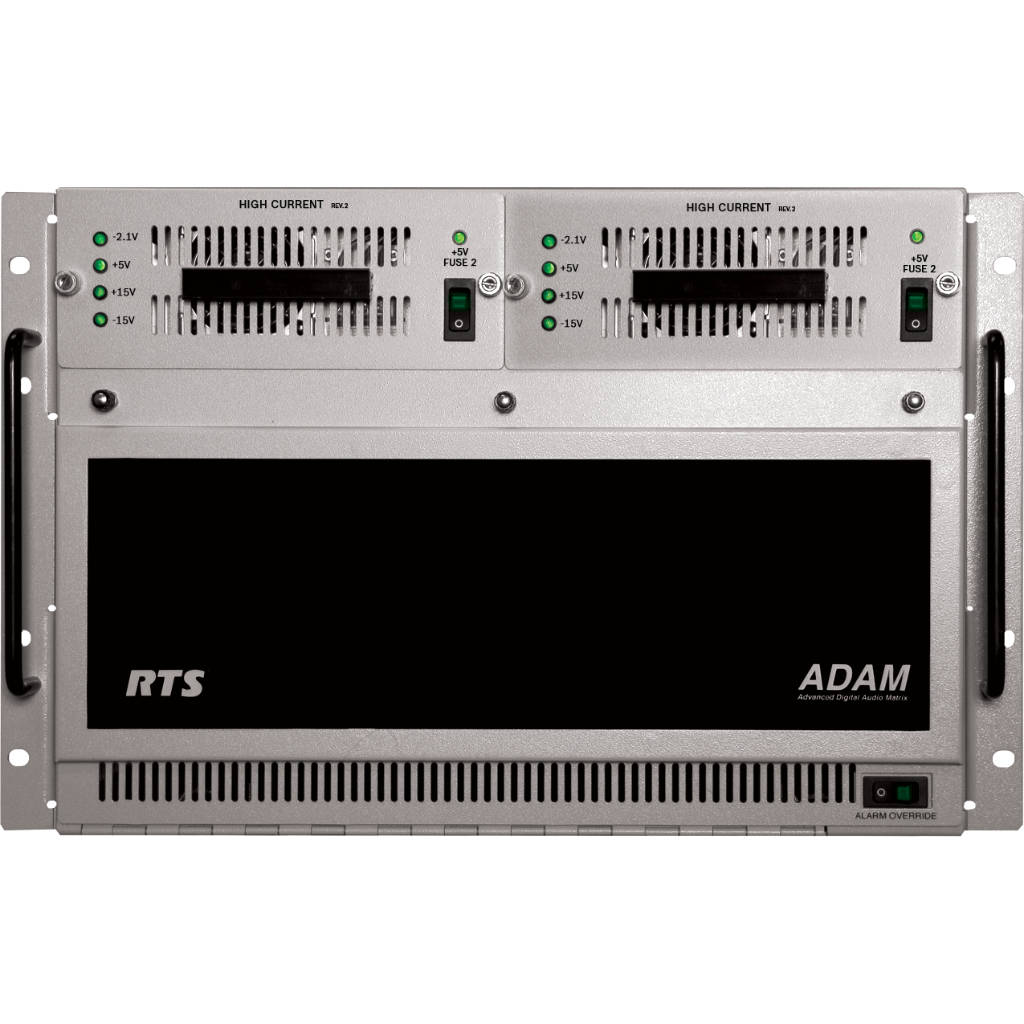

ADAM
Full-Size Modular Matrix Intercom
The full-size ADAM matrix supports up to 272 + ports with a single 7RU frame and ADAM can be linked to configure multi-frame systems of up to 880 ports. ADAM frames support the widest variety of audio interface cards in the industry, including AIO, RVON VoIP, Omneo and MADI.
| Attribute | ADAM | ADAM-M | ODIN | |
|---|---|---|---|---|
| Port capacity single frame | 272 | 128 | 128 | |
| Takes expansion cards | Yes | Yes | No | |
| Max ports, expanded system | 880 (Full OMNEO1) | 512 (Full OMNEO1) | 10242 | |
| Rack units single frame | 7 | 3 | 1 | |
| Redundant power supplies | Yes | Yes | Yes | |
| Redundant controllers | Yes | Yes | No | |
| Bus expansion | Yes (TBX) | Yes (TBX) | Yes (IFL4) | |
| Link method | Single or Multi Mode Fiber | Single or Multi Mode Fiber | Single or Multi Mode Fiber | |
| Cable length, single mode | 40 km (TBX) | 40 km (TBX) | 15 km5 (IFL) | |
| Cable length, multi mode | 550 m (TBX) | 550 m (TBX) | 500 m (IFL) | |
| Front-panel display | No | No | Yes | |
| Display type | NA | NA | TFT, color, icon-based | |
| Audio bits | 24 | 24 | 24 | |
| OMNEO audio | Yes | Yes | Yes | |
| Trunking support | Yes | Yes | Yes | |
| Matrix PC connection | Ethernet, Serial | Ethernet, Serial | Ethernet6 | |
| Field-upgradeable firmware | Yes | Yes | Yes | |
| Integrated partyline interface | No | No | Yes (2) | |
| General purpose outputs | External GPIO-16 | External GPIO-16 | 4 | |
| General purpose inputs | External GPIO-16 | External GPIO-16 | 4 |
